H2320 004
Introduction: H2320 004 is POM form BASF Ultraform®, high-molecular-weight grade for extrusion of small thin-walled pipes and panel.
Uses: Electronic appliances, automotive interior and exterior decoration, transportation, medical manufacturing and other industries.
Product Features
01
High rigidity and high modulus
02
Good resilience performance
03
Excellent chemical resistance
04
Excellent sliding friction performance
04
Excellent sliding friction performance
05
Low water absorption and excellent creep resistance
06
Dimensional stability
Product parameters
| TEST Items | Standard | Unit | Value |
| Density | ISO 1183 | g/cm³ | 1.4 |
| Shrinkage Flow 2.0mm | ISO 294 | % | 2.1 |
| Shrinkage xFlow 2.0mm | ISO 294 | % | 2.1 |
| Water Absorpation 23℃ 24hr | ISO 62 | % | 0.8 |
| Water Absorpation 23℃ 50hr | ISO 62 | % | 0.2 |
| Melt Index 190℃ 2.16kg | ISO 1133 | cm²/10min | 2.2 |
| Tensile Modulus 23℃ | ISO 527 | Mpa | 2600 |
| Tensile Strength 23℃ | ISO 527 | Mpa | 64 |
| Elongation 23℃ | ISO 527 | % | 32 |
| Tensile Creep Modulus 1000hr | ISO 899 | Mpa | 1300 |
| Charpy Notch impact | ISO 179 | KJ/㎡ | 6 |
| Flexural modulus | ISO 178 | Mpa | 3000/ |
| Charpy Notch impact | ISO 179 | KJ/㎡ | 5.5 |
| Charpy Un-notch Impact 23℃ | ISO 179 | KJ/㎡ | 250 |
| Charpy Un-notch Impact -30℃ | ISO 179 | KJ/㎡ | 210 |
| HDT Unannealed 1.8Mpa | ISO 75 | ℃ | 95 |
| Melting Temperature Cle flow | ISO 11357 | ℃ | 166 |
| Cle Flow | ISO 11359 | cm/cm/℃ | 1.20E-04 |
| Flame Rating All color 0.75mm | UL94 | / | HB |
| Flame Rating All color 1.5mm | UL94 | / | HB |
| Flame Rating All color 3.0mm | UL94 | / | HB |
Product applications
Products can be used in...
Electronic appliances, automotive interior and exterior decoration, transportation, medical manufacturing and other industries.

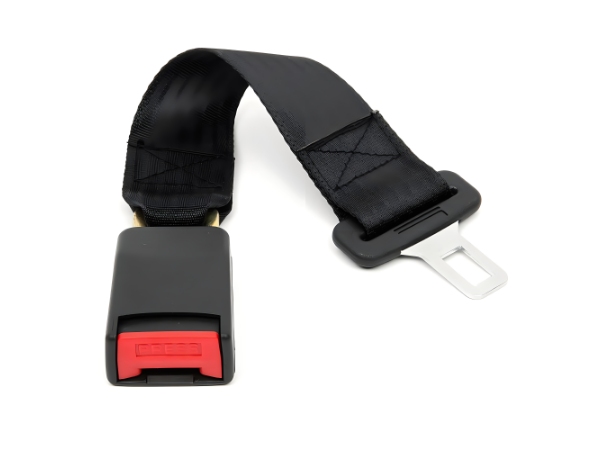

car safety buckle

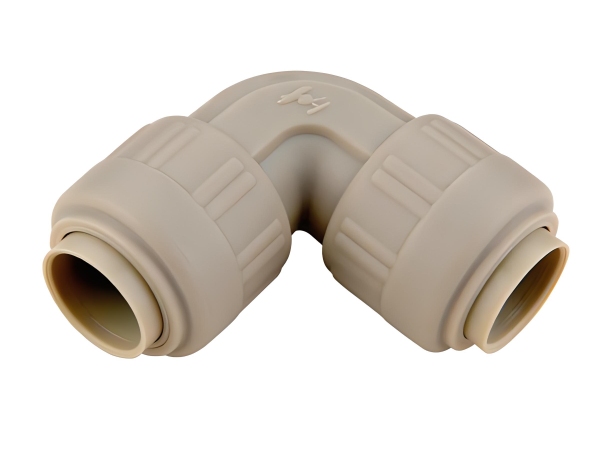

Pipe parts

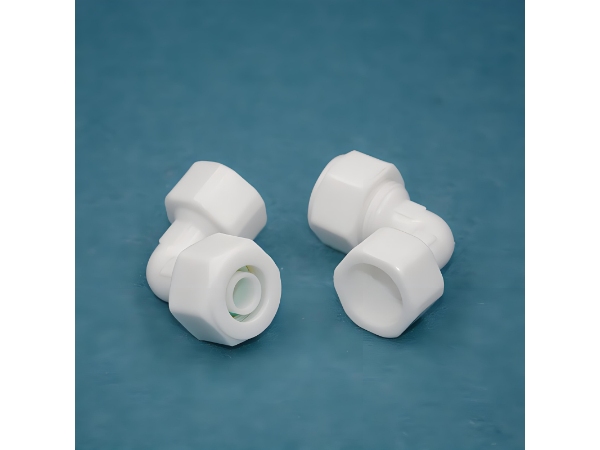

Pipe parts

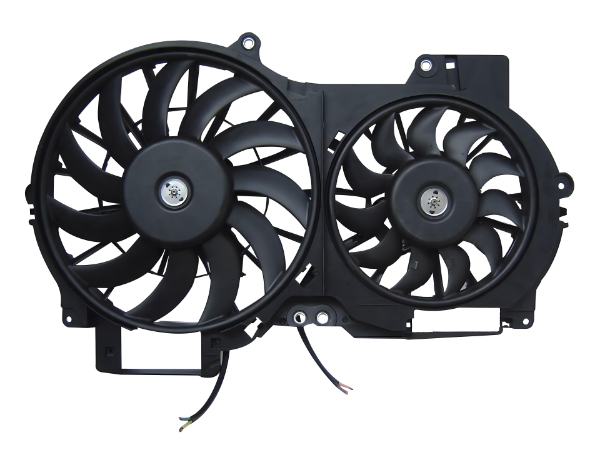

car radiator
Enterprise strengths
Resources Diversification
21 years of experience as import and export engineering plastic agent, with a full range of agent brands and more diverse options.
Comprehensive Customized Services
Industry and trade integration, 16 years of experience in modified plastic, pre-sales, sales and after sales technical support services.
Convenient Transportation
Close to natural harbor ---Qingdao port，makes more efficient the import and export operations.
Flexible Trading Methods
According to the commerce handbook “commerce manual + general trade ”, a variety of trade methods, bonded area warehouse with sufficient inventory.
Global Recognized Certifactions
Global Recognized Certifactions
If you require certificates in PDF format or complete datasheets, please contact us directly.
-
