HU1000
Introduction: ULTEM HU1000 resin is an unreinforced amorphous polyetherimide (PEI) resin that may a high glass transition temperature (Tg) of 217°C. The intended use for this material is in medical devices and pharmaceutical applications. The material is biocompatible (ISO 10993 or USP Class VI) and Healthcare management of change applies. The material may offer Steam-, Hydrogen Peroxide-, Gamma-, EtO-, UV-C- and E-beam resistance for repeated sterilization cycles. It may offer global food compliance (FDA, CN, EC). Features are excellent mechanical, electrical and dimensional properties up to high temperatures. The material may offer very good
Product Features
01
Medium fluidity, thermal stability, flame retardant;
02
Biocompatible;
03
Electron beam sterilization, ethylene oxide sterilization, gamma sterilization, steam sterilization.
04
Environmentally friendly certification, medical grade.
Product parameters
| TEST Items | Standard | Unit | Value |
| Density | ASTM D792 | g/cm³ | 1.27 |
| shrinkage flow 3.2mm | Internal Method | % | 0.5-0.7 |
| Water Absorption 24hr | ASTM D570 | % | 0.25 |
| Water Absorption 23℃ Equilibrium | ASTM D570 | % | 1.25 |
| Melt Index 337℃ 6.6kg | ASTM D1238 | g/10min | 9 |
| Tensile Modulus 5mm/min | ASTM D638 | MPa | 3580 |
| Tensile Strength Yield 5mm/min TYPEL | ASTM D638 | Mpa | 110 |
| Tensile Strength Break 5mm/min TYPEL | ASTM D638 | Mpa | 90 |
| ELongation Yield 5mm/min Typel | ASTM D638 | % | 7 |
| ELongation Break 5mm/min Typel | ASTM D638 | % | 60 |
| Flexural Strength Yield 1.3mm/min | ASTM D790 | MPa | 173 |
| Flexural Modulus 1.3mm/min | ASTM D790 | Mpa | 3430 |
| Izod Notch Impact 23℃ | ASTM D256 | J/m | 53 |
| Izod Notch Impact -30℃ | ASTM D256 | J/m | 55 |
| Izod Un-notch Impact 23℃ | ASTM D4812 | J/m | 1335 |
| HDT Unannealed 1.8Mpa 6.4mm | ASTM D648 | ℃ | 201 |
| Vicat 50℃/hr 50N | ASTM D1525 | ℃ | 218 |
| Flame Rating All color 0.4mm | UL 94 | / | V-2 |
| Flame Rating 0.75mm | UL 94 | / | V-0 |
| Flame Rating All color 1.5mm | UL 94 | / | V-0 |
| Flame Rating All color 3.0mm | UL 94 | / | V-0 5VA |
| limiting Oxygen Index | ASTM D2863 | % | 47 |
Product applications
Products can be used in...

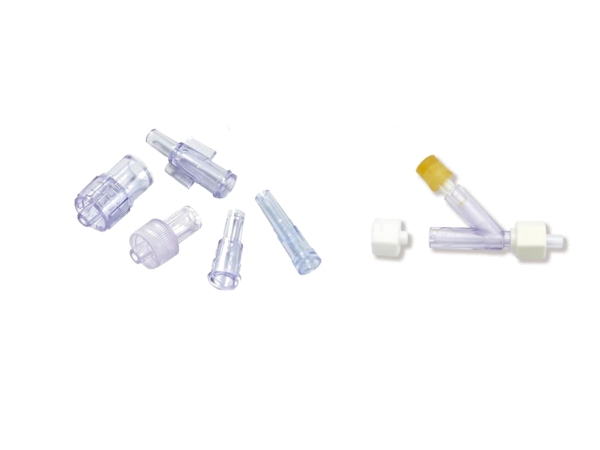

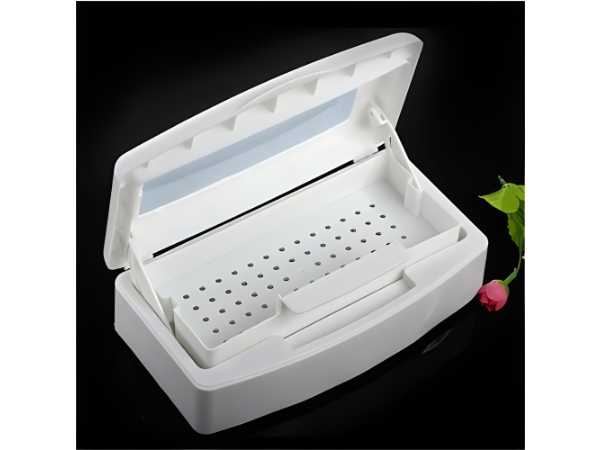

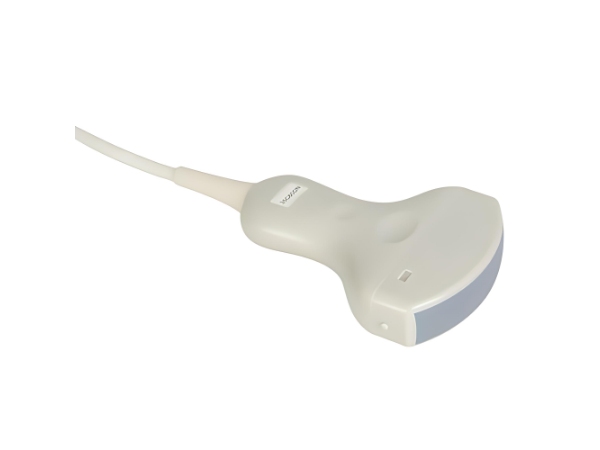

Fluid and blood handling, healthcare facility infrastructure, medical devices, healthcare supplies
PEI
PEI
PEI
PEI
